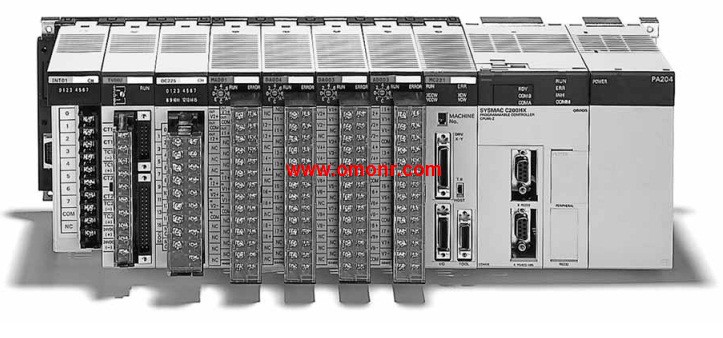

C200HE-CPU32-ZE CPU Unit
OMRON C200HE-CPU32-ZE Manual And Instructions
C200HE-CPU32-ZE OPERATION MANUAL
OMRON C200HE-CPU32-ZE Product information and technical parameters：
Brand: OMRON
Name: CPU Unit
Model: C200HE-CPU32-ZE
UM: 7.2K words.
DM: 6K words.
EM: --.
Instruction processing time (basic instructions): 0.3 µ.s min.
No. of I/O points: 880 points.
Max. no.of con-necting Expansion I/O Racks: 2 Racks.
Max. no. of connecting High-density I/O Units(i.e., Group-2): Unavailable.
Max. no. of con-necting Special I/O Units: 10.
RS-232C: NO.
