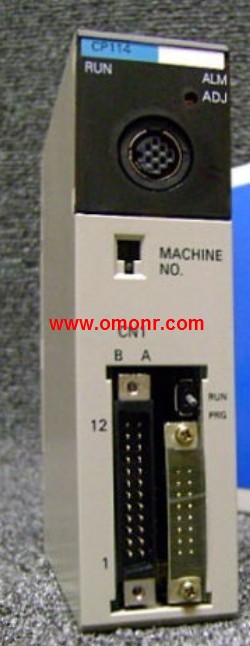

C200H-CP114 Cam Positioner Control Module
OMRON C200H-CP114 Manual And Instructions
C200H-CP114 OPERATION MANUAL
OMRON C200H-CP114 Product information and technical parameters：
Brand: OMRON
Name: Cam Positioner Control Module
Model: C200H-CP114
Name: Cam Positioner Module.
Model: C200H-CP114.
Output points: 48 points (16 external output points, 32 internal output points).
External outputs: NPN transistor open collector (withphoto-coupler insulation)
Switching capacity: 100 mA at 24 VDC Simultaneous O
