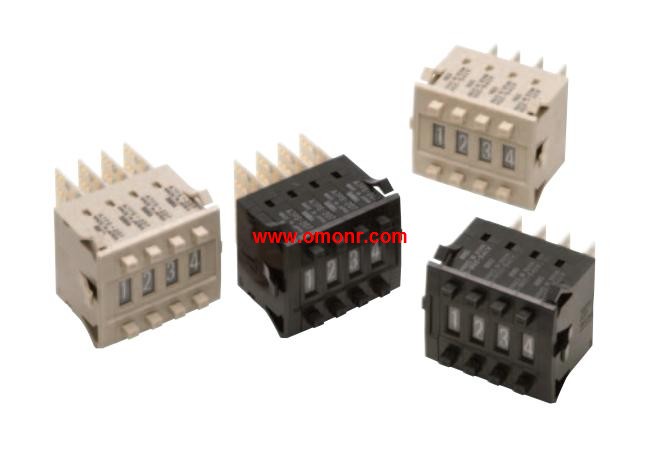

A7PS-206 Thumbwheel Switch
OMRON A7PS-206 Manual And Instructions
A7PS-206 datasheetPDF datasheet
OMRON A7PS-206 Product information and technical parameters：
Brand: OMRON
Name: Thumbwheel Switch
Model: A7PS-206
Model: A7PS.
Classification (See note 1.): Snap-in (front mounting).
Character height: Decimal: 6.8 mm Hexadecimal: 4.0 mm.
Terminals: Solder terminals.
Color: Light gray.
Output code number: 06 (binary coded decimal).
Dust-tight, Easy-to-Use,
Push-operated Switches with Large.
Display Characters.
Simple push mechanism and large, easy-to-view numeric display,
make setting easy.
Dust penetration prevented with seal for the display windows.
