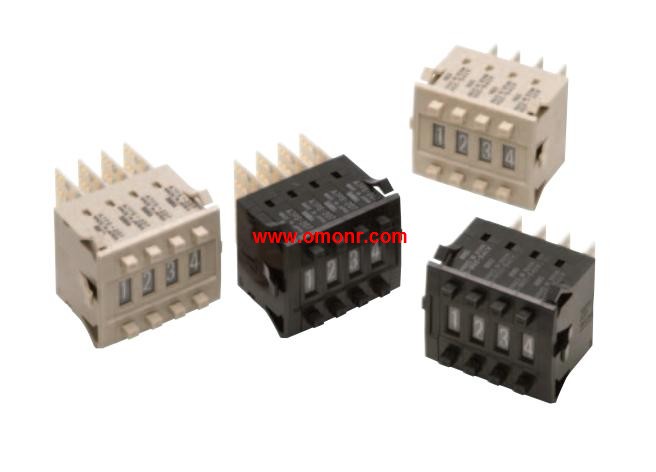

A7PH-254-1 Thumbwheel Switch
OMRON A7PH-254-1 Manual And Instructions
A7PH-254-1 datasheetPDF datasheet
OMRON A7PH-254-1 Product information and technical parameters：
Brand: OMRON
Name: Thumbwheel Switch
Model: A7PH-254-1
Model: A7PS.
Classification (See note 1.): Snap-in (front mounting), Long-life type.
Character height: Decimal: 6.8 mm Hexadecimal: 4.0 mm.
Terminals: Solder terminals.
Color: Black.
Output code number: 54 (binary coded hexadecimal).
Dust-tight, Easy-to-Use,
Push-operated Switches with Large.
Display Characters.
Simple push mechanism and large, easy-to-view numeric display,
make setting easy.
Dust penetration prevented with seal for the display windows.
