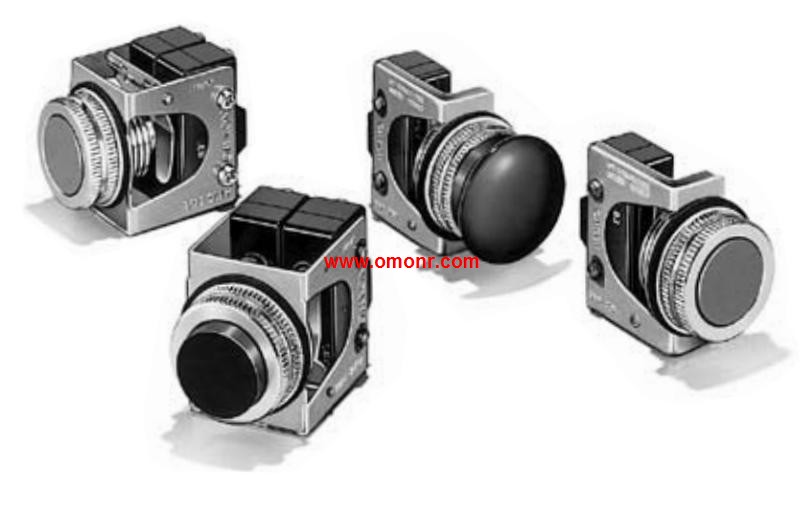

2ZAP-2R Pushbutton Switch
OMRON 2ZAP-2R Manual And Instructions
2ZAP-2R datasheetPDF datasheet
OMRON 2ZAP-2R Product information and technical parameters：
Brand: OMRON
Name: Pushbutton Switch
Model: 2ZAP-2R
Classification: Momentary operation.
Shape of Operation Unit: 40 dia.
Output: 2.
Operation Unit color: Red (-R).
Long Service Life with Built-in Z-series.
Basic Switch.
Using a Basic Switch enables direct switching of large-capacity loads.
Shock-absorbing construction of Operation Unit protects the Switch.
Drip-proof Pushbutton construction enables use in locations subject to,
splashing water and oil and scattering dust.
Pushbuttons are available in three shapes and six colors.
