Release Key Type: Standard (metal).
Wiring method: Connector.
Solenoid voltage/Indicator: 24VDC (without indicator).
Lock and release type: Mechanical lock Solenoid release.
Contact configuration (door open/closed detection switch,
and lock monitor switch contacts): 4-contact Model,
Insert the built-in switch (A, B, C, D, S, T, U or V) into the blank @.
Conduit size (See Note.): 1/2-14NPT.

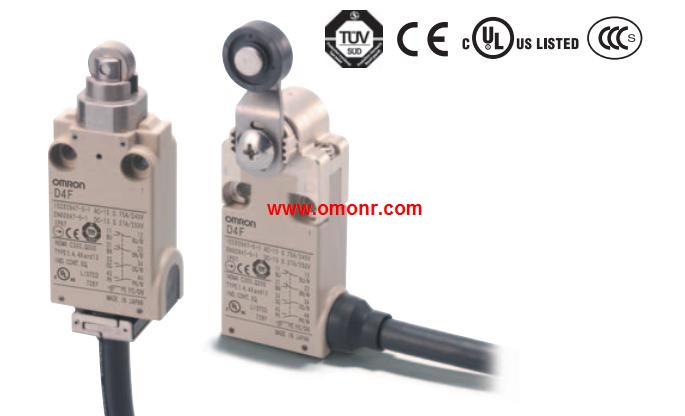

World''s smallest Class 6-contact Guard Lock D4F-402-3D
Safety-door Switch.
.
Wiring time is reduced with two types of wiring.
methods capable of one-touch attachment and removal.
A wide variety of built-in switches can be used for various devices.
(4-, 5-, and 6-contact models are available).
Key holding force of 1,300 N.
It is possible to change the key insertion point.
without detaching the head.
Drive solenoids directly from the Controller.
.
Lockout Key to prevent workers from becoming.
trapped inside the hazardous area.
The vertical D4SL Guard Lock Safety-door Switch,
can be easily mounted on 40 × 40 mm aluminum frames.
The plastic material makes the Slide Key suitable,
for lightweight doors. Size: M12 (Brass); Double; Unshielded.
Sensing distance: 16 mm.
Connecting method (See note 1.): M12 Connector.
Body length: Short.
Output configuration: NPN.
Operation mode NC.
A new generation in global applications. Model: A7PS.
Classification (See note 1.): Snap-in (front mounting).
Character height: Decimal: 6.8 mm Hexadecimal: 4.0 mm.
Terminals: Solder terminals.
Color: Light gray.
Output code number: 54 (binary coded hexadecimal).
Dust-tight, Easy-to-Use,
Push-operated Switches with Large.
Display Characters.
Simple push mechanism and large, easy-to-view numeric display,
make setting easy.
Dust penetration prevented with seal for the display windows. Type: M10.
Actuator: Cone-shaped actuator.
Cable length: 1 m.
Detects Objects in Multiple Directions,
with High Sensitivity, Ideal for Robotics,
Slow-action switching mechanism used.
Gold-plated contact with coil spring capable of switching,
micro current/voltage load while providing high contact reliability.
Inputs directly to microcomputers and programmable controllers.
Three sizes (M10, M8, and M5) and three types of compact actuators.
Easy panel mounting.
D4F-402-3D Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=D4F-402-3D&select=5
