Item: Box-type controllers.
CPU: High-speed Controllers (4 core).
No. of cameras: 4.
Output: NPN/PNP.
Like or even more than the human eye.
A complete line-up of cameras for various applications.
Powerful controllers for fast and precise,
inspection and measurement.
Software for easy setting of various measurements. Appearance: Knob-type Selector Switch A22W,
LED lighting (without Voltage Reduction Unit) D4A-2516N
Number of notches: 3 notches.
Resetting method: Manual.
Output: SPST-NO + SPST-NO.
Operating voltage: 12 VAC/VDC.
Illumination color: R (red); Y (yellow); G (green); A (blue).
Install in 22-dia. or 25-dia. Panel Cutout.
Lever for easily mounting and removing the Switch Unit.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type,
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Ratings: Standard load; 0.1 A at 125 VAC, 0.1 A at 30 VDC.
Cable: VCTF cable *2.
Actuator: Center roller lever.
Cable length : 3 m.

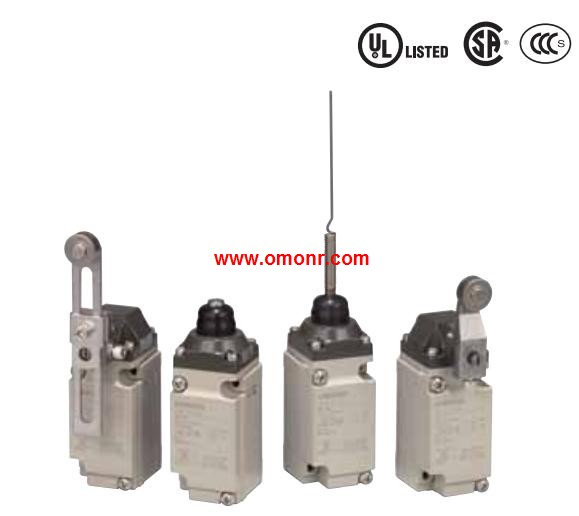

Compact Limit Switch That''s Also.
Thin and Highly Sealed.
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for information on approved models.)
Sealing characteristics that meet IEC IP67 degree of protection.
Triple-sealed construction:
Plunger section sealed via nitrile rubber packing seal and,
diaphragm; switch section sealed via nitrile rubber cap;
cable entrance sealed via encapsulating material.
Cable lengths of 3 and 5 m available on standard models.
Models also available with UL and CSA-certified cables.
Multiple mounting possible with Switches with Plungers.
Models with red LED indicators added to series for easy,
confirmation of operation.
(Set by default to light for non-operation.)
VCTF oil-resistant cables with CE marking.
(Applicable only to standard models.)Model: C200H-MAD01.
External input points: 2.
External output points: 2.
External input signal range: 1 to 5 V or 0 to 10 V or –10 to 10 V.
External output signal range: 1 to 5 V or 0 to 10 V or –10 to 10 V.
D4A-2516N Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=D4A-2516N&select=5
