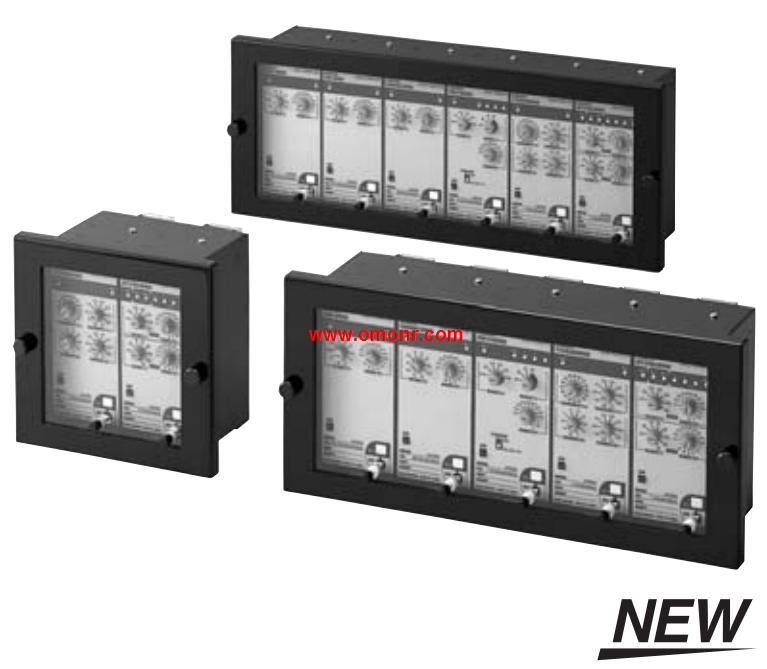

Collection housing: square type shell embedded ADR shell.
Purpose: high voltage non grounded system; high voltage PC (reactor) grounding system.
Digital ground directional relay K2GS-H type,
Can measure the zero phase current, zero phase voltage of the digital DGR.
And automatic test equipment can be used to test the relay conveniently.
Can be set for the coordination of a small number of hours to adjust the time K2ZC-K2GV-NT
Improve reliability by monitoring function at any time.
LED can be used to confirm the occurrence of anomalies.
The forced action of the experimental switch can be easily recognized.
Based on the DIN standard size, the depth is only small size 88.5mm. (except for terminal units)
Release Key Type: Standard (metal).
Wiring method: Terminal block.
Solenoid voltage/Indicator: 24VDC (Orange).
Lock and release type: Mechanical lock Solenoid release.
Contact configuration (door open/closed detection switch,
and lock monitor switch contacts): 5-contact Model,
Insert the built-in switch (E, F, G or H) into the blank @.
Conduit size (See Note.): M20.
World''s smallest Class 6-contact Guard Lock.
Safety-door Switch.
.
Wiring time is reduced with two types of wiring.
methods capable of one-touch attachment and removal.
A wide variety of built-in switches can be used for various devices.
(4-, 5-, and 6-contact models are available).
Key holding force of 1,300 N.
It is possible to change the key insertion point.
without detaching the head.
Drive solenoids directly from the Controller.
.
Lockout Key to prevent workers from becoming.
trapped inside the hazardous area.
The vertical D4SL Guard Lock Safety-door Switch,
can be easily mounted on 40 × 40 mm aluminum frames.
The plastic material makes the Slide Key suitable,
for lightweight doors. No. of notches: 2 notches.
Output: SPDT.
Reset method: Manual.
Lighting method: LED.
Separate Construction with Cylindrical.
16-dia. Body.
Same separate construction as the A16-series Pushbuttons with,
Miniature Design of 28.5 mm.
The same contacts can be used for both standard loads and,
microloads.
Oil-resistant IP65 models,
Conforms to EN60947-5-1.
K2ZC-K2GV-NT Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=K2ZC-K2GV-NT&select=5
