Actuator: Adjustable roller lever, form lock (metal lever, rubbe roller).
Conduit size: 1-conduit; G1/2.
Built-in switch mechanism: 1NC/1NO MBB(Slow-action).
Popular Safety Limit Switches.
Providing a Full Lineup Conforming to,
International Standards.
Lineup includes models with 1NC/1NO, 2NC, 2NC/1NO and,
3NC contact forms.
(Slow-action models with MBB contacts are available.)
M12-connector models are also available, saving on labor and,

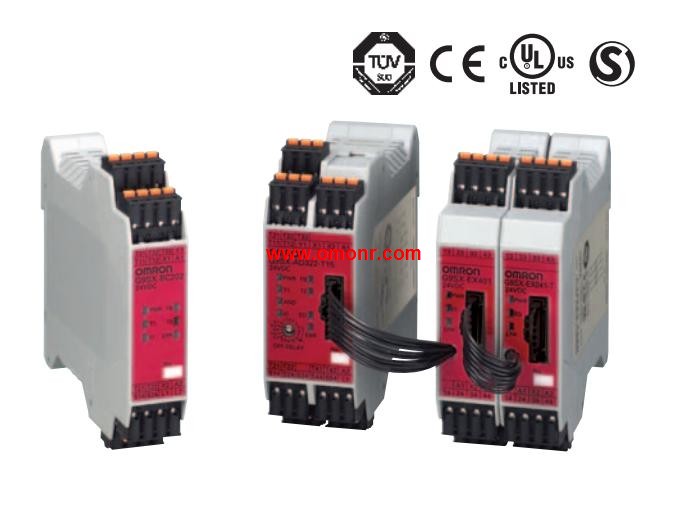

simplifying replacement G9SX-AD322-T150-RC DC24
Standardized gold-clad contacts provide high contact reliability.
Can be used with both standard loads and microloads.
Conforms to EN115-1, EN81-1, and EN81-2 (slow-action models only).
Certified standards: UL, EN (TÜV), and CCC. Model: PY (back-mounting), page 15, PCB terminals.
Number of pins: 14 pins.
A Wide Variety of Square and,
Round Sockets in Front-mounting,
and Back-mounting Models,
Models available with finger protection.
Hold-down Clips and Socket Bridges for PYF Sockets,
are also available.
New screwless models available. Support for a Wide Range of Applications with Position Control,
Speed Control, Torque Control.
High-speed Response.
The G-series AC Servomotors and Servo Drives have,
achieved high-speed response capabilities, with a high,
response frequency of 1 kHz.
Suppressing Vibration of Low-rigidity Mechanisms during,
Acceleration/Deceleration.
The damping control function suppresses vibration of,
low-rigidity mechanisms or devices whose ends tend to,
vibrate. Two damping filters are provided to enable switching,
the vibration frequency automatically according to the direction,
of rotation and also via an external signal. In addition,
the settings can be made easily merely by setting the vibration,
frequency and filter values, and you are assured of stable,
operation even if the settings are inappropriate.
High-speed Positioning via Resonance Suppression Control,
The realtime autotuning function automatically estimates,
the load inertia of the machine in realtime and sets the,
optimal gain. The adaptive filter automatically suppresses,
vibration caused by resonance. Also, two independent,
notch filters make it possible to reduce vibration of a,
mechanism with multiple resonance frequencies.
G9SX-AD322-T150-RC DC24 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=G9SX-AD322-T150-RC DC24&select=5
