Advanced Functionality in a Super Compact Design.
Compact AC Servo Drives.
The footprint of the compact AC Servo Drives is only 48%,
that of the SMARTSTEP A Series, and the volume is only,
39%. The AC Servo Drives of the SMARTSTEP 2 Series,
are also equipped with new functions and higher perfor,
mance for more accurate positioning.
Vibration Suppressed during Acceleration/Deceleration of,
Low-rigidity Mechanisms XS2R-D426-B11-F
Damping control suppresses vibration when using the,
SMARTSTEP 2 for low-rigidity mechanisms or devices in,
which the end vibrates.
Resonance Control for High-speed Positioning.
Realtime autotuning estimates the load inertia of the ma,
chine in realtime and automatically and constantly sets the,
optimal gain. The adaptive filter automatically suppresses,
vibration caused by resonance.
Compatible with 90° Phase Difference Input Command,
Pulses.
In addition to conventional CW/CCW inputs (2 pulses) and,
SIGN/PULS inputs (1 pulse), the SMARTSTEP 2 supports,
90° phase difference inputs. This makes it possible to input,
encoder output signals directly into the Servo Drive for sim,
plified synchronization control. No. of cable cores: 4.
Cable connection direction: Right-angle.
Cable length L: 0.3 m.

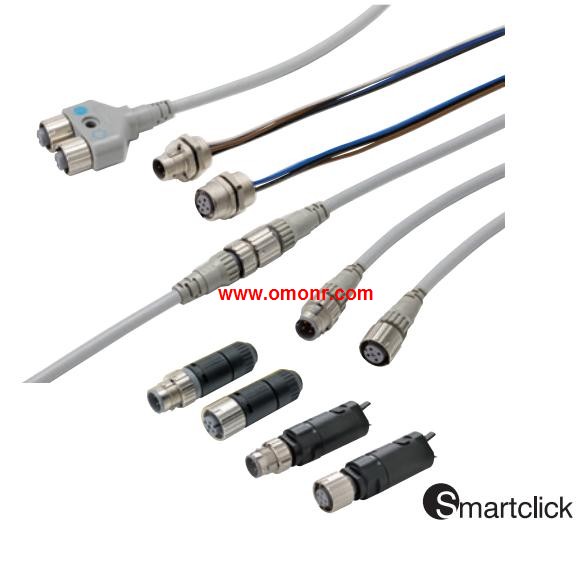

Small Round Water-resistive.
Connectors.
Water-resistive, compact connector meets IP67 requirements.
Conventional M8 screw-mounting models are available along with,
S8 snap-in models that connect and disconnect with one touch.
Ideal for a wide variety of FA and OA applications.
Connectors on both cable ends require no harness work.
Some new M8 models with 3 or 5 poles. Actuator: Roller lever: R38.
Indicator: LED.
Item: Basic.
Pretravel (PT): 15±5°.
Select the Best Two-circuit Switch for the,
Operating Environment and Application,
from a Wide Range of Models,
A wide selection of models is available, including General-purpose,
Environment-resistant, and Spatter prevention Switches.
Standard-feature gold-clad crossbar contacts provide high reliability.
Applicable to either standard loads or microloads.
Switches with Lever Actuators provide 90° overtravel,
one-side operation, and four-direction head mounting.
Approved standards: EN/IEC, UL, cUL, and CCC.
Contact your OMRON representative for information on approved models.
