Product name: Conductive Level Controller.
Model number: Open collector (NPN).
Battery (24 VDC) allows use in locations.
without AC power supply. AC sine-wave.
voltage between electrodes enables stable.
detection with no electric corrosion.
Outputs can be set to self-hold at ON or OFF using special circuits.
Adjustable sensitivity, with an operating resistance range of 0 to,
100 kΩ, allows use for a wide variety of liquids UMRT8
Relay contact chattering conventionally caused by waves elim,
inated using open collector output, reducing contact wear.
Meets CE marking and is a UL recognized component. Receptacle box: G 1/2 Conduit.
Indicator: With neon lamp indicator (AC).
Actuator: Roller lever *1, Maintained *2.
Approved standards: UL, CSA.
The Limit Switch with Better Seal,
Shock Resistance, and Strength.
A double seal on the head, a complete gasket cover, and,
other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13).
Wide standard operating temperature range:
-40°C to +100°C (standard type).
Models with fluoro-rubber available for greater resistance to chemicals.
Block mounting method also reduces downtime for maintenance.
DPDT, double-break models available for complex operations.
Approved by UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for information on approved model.) International Standards for G3B Series,
Same Profile as MK Power Relays.
Shape-compatible with mechanical relays.
Certified by UL, CSA, and VDE (models numbers with a suffix of “-VD”).
Plug-in type, same size as MK Power Relays.
Operation indicator provided to confirm input.
DC Output model available with 3 to 125-VDC load voltage,
range for high-voltage applications. Size: DIN 1/4, 96 x 96 x 78mm.
Power supply voltage: AC100 ~ 240V.
Alarm points: 3 points.
Control output: current.
Input: thermocouple.

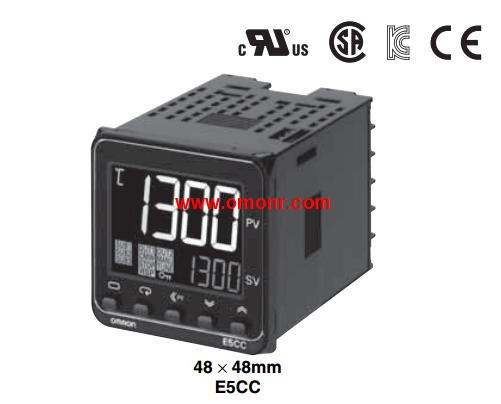

New generation intelligent general temperature controller.
The thickness is only 78 mm.
Various temperature inputs: thermocouple, platinum resistance, non contact temperature sensor signal input.
Automatic adjustment and self adjustment.
Automatic adjustment can be performed even when the self adjustment is being performed.
UMRT8 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=UMRT8&select=5
